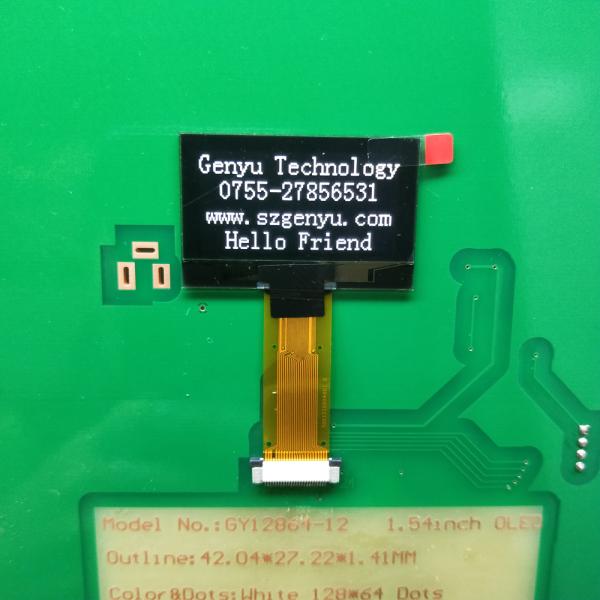

1.54 Inch OLED Display White Color 128x64 Resolution SPD0301 24pin FPC
Key Features of the 1.54-inch PMOLED 128x64 Display:
-
Display Size: 1.54 inches (diagonal).
-
Resolution: 128x64 pixels (monochrome).
-
Technology: PMOLED (Passive Matrix OLED), typically black-and-white.
-
Controller IC: Common controllers for such displays include SSD1309 or other similar drivers.
-
Interface: Most commonly I2C or SPI.
-
Low Power Consumption: OLED technology is energy-efficient, especially when displaying dark content.
-
High Contrast: OLED displays provide true blacks and high contrast, which results in clear visibility.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-12 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | White |
| 5 | Size | 1.54 Inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size | 42.04(W)x27.22(H)x1.41(D) mm |
| 8 | View Area | 37.052 (W) x 19.516(H) mm |
| 9 | Active Area | 35.052(W) x17.516(H) mm |
| 10 | Dot Size | 0.254(W)*0.254(H) mm |
| 11 | Dot Pitch | 0.274(W)*0.274(H) mm |
| 12 | Drive IC | SPD0301ZD |
| 13 | Interface | 6800/8080 interface, 4 wire serial interface, I2C |
| 14 | FPC Connector | 24PIN, socket type |
| 15 | FPC Pitch | 0.5 mm |
| 16 | Drive Method | VDD=1.65V~3.3V, Vin=11.5~12.5V |
| 17 | Viewing Angle | 160° |

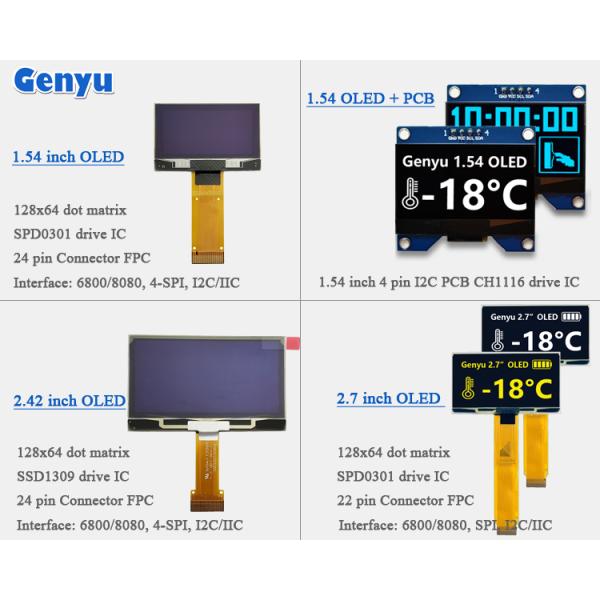

OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.
Applications of the 1.54-inch PMOLED 128x64 Display:
-
Wearables: This display is often used in smartwatches and fitness trackers for showing time, notifications, and simple data.
-
IoT Devices: PMOLED displays are widely used in Internet of Things (IoT) devices to display sensor data, status information, or user interfaces.
-
Portable Gadgets: Small handheld electronics, such as e-readers, remote controls, and handheld devices, often use these compact displays.
-
Prototyping: In the development and prototyping phases, these displays can be used to visualize data or create a user interface without requiring a large screen.
FAQ
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
3. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
4. Q: What is the delivery time?
A: For small orders: 7-15 days. For mass production: 25-30 days.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
